Características

Especificações

Nome: Três feixes de cordel

Modelo: Sh

Carga nominal: 5KN

Peso: 2,8kg

Destacar:

5KN nylon transmission pulley

three phase conductor stringing block

three sheaves transmission pulley

Informação básica

Lugar de origem: Ningbo

Marca: Suntech

Certificação: ISO

Número do modelo: Sh

Condições de Pagamento e Envio

Detalhes da embalagem: caixa de madeira compensada

Tempo de entrega: 3-7 dias

Termos de pagamento: L/C,T/T

Habilidade da fonte: 500 unidades/mês

Galeria

Three Sheaves Stringing Block for Three Phase Conductors | 5KN Nylon Transmission Pulley

Descrição de produto

Three Sheaves Stringing Block for Three Phase Conductors | 5KN Nylon Transmission Pulley

Product Introduction

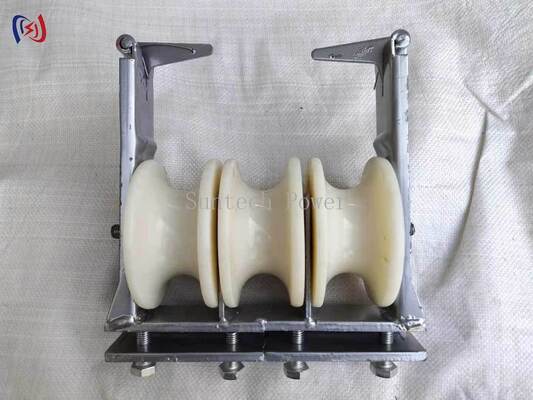

The Three Sheaves Stringing Block is designed for simultaneous pulling and guiding of three phase conductors during transmission line construction. It features a three-sheave structure mounted on one frame, allowing multiple overhead conductors to be pulled in parallel through controlled guiding channels.

This model, SH80S, has a 5KN rated load, 2.8kg weight, and nylon sheaves. It is suitable for overhead conductor stringing, three phase conductor installation, and utility line construction where conductor alignment and low-friction guiding are required.

The nylon sheave structure helps guide conductors smoothly during stringing work and is suitable for power line construction and reconductoring projects.

Product Specifications

Item Number	Model	Rated Load	Weight	Remark
10226	SH80S	5KN	2.8kg	Nylon Sheave

Additional Product Information

Item	Description
Product Name	Three Sheaves Stringing Block
Model	SH80S
Rated Load	5KN
Weight	2.8kg
Sheave Material	Nylon Sheave
Certification	ISO
Packaging	Plywood Case
Main Use	Simultaneous pulling of three phase conductors
Typical Application	Transmission line construction and conductor stringing

Application Areas

The Three Sheaves Stringing Block is suitable for:

Transmission line construction
Three phase conductor pulling
Overhead conductor stringing
Bundle conductor installation
Power line construction
Grid construction and maintenance
Reconductoring projects
Utility construction field work

It is commonly used when three conductors need to be pulled and guided at the same time during overhead line installation.

Product Advantages

Three-Sheave Structure for Multi-Conductor Pulling

The three-sheave design allows three conductors to be guided through separate channels during stringing work, supporting simultaneous conductor pulling.

5KN Rated Load for Line Construction

The 5KN rated load is suitable for the three phase conductor stringing applications shown in the product data.

Nylon Sheaves for Conductor Guiding

The product uses nylon sheaves, which help guide conductors during installation and reduce direct metal-to-conductor contact.

Lightweight 2.8kg Body

With a weight of 2.8kg, the block is convenient for field handling, positioning, and installation during overhead line construction.

Suitable for Transmission Line Projects

This stringing block is used for transmission line construction, conductor installation, and reconductoring work where multiple conductors require controlled alignment.

Frequently Asked Questions

What is a Three Sheaves Stringing Block used for?

It is used for simultaneous pulling and guiding of three phase conductors during transmission line construction and overhead conductor stringing.

What is the rated load of this model?

The rated load of model SH80S is 5KN.

What is the weight of the product?

The product weight is 2.8kg.

What material is used for the sheaves?

The product uses nylon sheaves.

Is it suitable for three phase conductor installation?

Yes. It is designed for simultaneous pulling of three phase conductors.

Can it be used for transmission line construction?

Yes. It is suitable for overhead conductor stringing, transmission line construction, and utility line installation projects.
