Características

Especificações

Nome: Caixas de comando para dois condutores de conjunto

Modelo: SZ2-8

Carga nominal: 80-180 kn

largura: 75-125 mm

Peso: 17-100KG

Garantia: 1 ano

Destacar:

80-180KN Rated Load Head Boards

Precise Subconductor Spacing Twin Spacer Dampers

Aeolian Vibration Damping Duplex Spacer Dampers

Informação básica

Lugar de origem: Ningbo

Marca: Suntech

Certificação: ISO

Número do modelo: SZ2

Condições de Pagamento e Envio

Detalhes da embalagem: Caixa de madeira compensada

Tempo de entrega: 3-7 dias

Termos de pagamento: L/C,T/T

Habilidade da fonte: 20.000 PCS/mês

Galeria

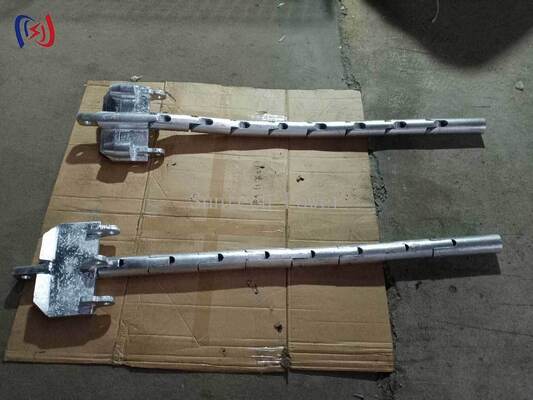

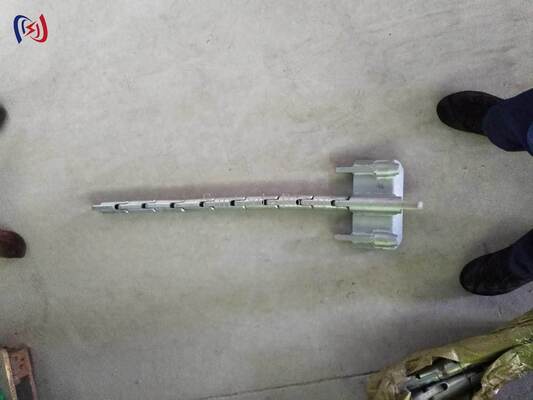

Professional Head Boards for Two Bundle Conductors with 80-180KN Rated Load for Precise Subconductor Spacing and Aeolian Vibration Damping

Descrição de produto

Professional Head Boards for Two Bundle Conductors

Professional Head Boards for Two Bundle Conductors ensure secure spacing in transmission line installations. These critical components maintain precise separation between sub-conductors while providing essential vibration damping for reliable power transmission.

Product Specifications

Item Number	Model	Rated Load (KN)	Applicable Sheave Width (MM)	Weight (KG)	Feature
17220	SZ2-8	80	75	17	Conductor are independent
17221	SZ2-8A	100		19
17222	SZ2-8B	110		19.5
17223	SZ2A-8	80	100	90	Poising sheave
17223T	SZ2A-8T	110	100		Poising sheave
17224	SZ2B-13	130	110	55	Conductor are independent
17225	SZ2C-13	130	110	50	Conductor are independent
17226	SZ2B-18	180	125	90	Conductor are independent

Product Overview

Head Boards for Two Bundle Conductors, also known as twin or duplex spacer dampers, are essential components for high-voltage and extra-high-voltage transmission lines using bundle conductor configurations. These devices maintain precise separation between sub-conductors while incorporating damping elements to absorb vibration energy, ensuring long-term reliability and preventing conductor fatigue and damage.

Key Features and Benefits

Maintains Precise Subconductor Spacing Ensures required separation between conductors for optimal electrical performance, preventing corona discharge and maintaining line efficiency.
Prevents Conductor Clashing and Wear Eliminates contact between energized conductors to prevent short circuits, abrasion, and mechanical damage under various environmental conditions.
Provides Vibration Damping Absorbs and dissipates energy from aeolian vibration and subspan oscillation to prevent conductor fatigue and hardware damage.
Optimizes Electrical Performance Maintains proper electromagnetic field interaction to minimize power losses and support designed current-carrying capacity.
Durable Construction Manufactured from high-strength, corrosion-resistant aluminum alloys for 40+ years of reliable service in harsh environmental conditions.
Easy Installation and Maintenance Designed for efficient installation using live-line or hot-stick methods, with modular designs facilitating inspection and replacement.
Enhances Grid Capacity Enables safe bundle conductor operation, increasing power transfer capacity of existing transmission line right-of-ways.
Reduces Lifetime Costs Minimizes repair needs, conductor replacements, and unplanned outages through effective vibration and wear prevention.

Head Boards for Two Bundle Conductors are sophisticated mechanical damping devices that actively manage wind and electromagnetic forces to ensure decades of safe, reliable, and efficient transmission line operation. They are essential for converting the theoretical benefits of bundle conductor technology into practical, real-world performance.

etiqueta:

Pessoa de Contato :	Mr. Peter Mao
Telefone :	86-13958364836

Professional Head Boards for Two Bundle Conductors with 80-180KN Rated Load for Precise Subconductor Spacing and Aeolian Vibration Damping

80-180KN Rated Load Head Boards

Precise Subconductor Spacing Twin Spacer Dampers

Aeolian Vibration Damping Duplex Spacer Dampers

fio que amarra blocos

condutor que amarra blocos

80-180KN Rated Load Head Boards

Ferramentas de ereção de torre de linha ereta 10KN Três rodas Ferramentas de elevação de aço

As polias de alumínio triplas cabografam a polia que amarra blocos com o de borracha alinhado

Maestro de cabo Gripper de ACSR

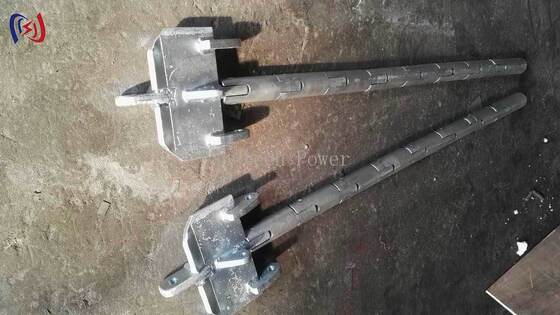

Professional Head Boards for Three Bundle Conductors with 100-180KN Rated Load, Precise Triangular Geometry, and Corrosion-Resistant Aluminum Alloy
